What is the difference between an oxygen concentrator and a ventilator?

With the popularity of home medical equipment, two types of “respiratory aids” – oxygen concentrators and ventilators – have begun to appear frequently in homes, nursing homes, rehabilitation centers and other settings. They are similar in appearance and both are related to “breathing”, which often makes people think that they are different names for one kind of equipment.

So, what is the difference between an oxygen concentrator and a respirator? The answer lies in the fact that one is “oxygen supply equipment” and the other is “ventilation equipment”. The former is responsible for delivering purified oxygen to the nasal cavity, while the latter can “push air into the lungs” through positive pressure, thus replacing or assisting the breathing action.

Definition and core function comparison

Although oxygen concentrator (Oxygen Concentrator) and ventilator (Ventilator) in the appearance and use of the object is often confused, but from the perspective of the fundamental function, they are two completely different devices. One is responsible for “providing oxygen” and the other is responsible for “controlling respiration”, and there is a fundamental difference in the applicable population, working mechanism and usage scenarios.

1.Oxygen Concentrator

Typical application scenarios:

Chronic Obstructive Pulmonary Disease (COPD), emphysema and other low-oxygen patients home oxygen therapy

Post-surgery recovery, pregnant women’s oxygen supply, the elderly rehabilitation

Plateau acclimatization and fatigue travel supplementation of oxygen

Mild sleep disorders assisted oxygen inhalation (non-alternative ventilation)

Users are easily confused point clarification:Some patients mistakenly believe that “hypoxia” means “respiratory failure”, but in fact, if you can breathe normally and only need oxygen supplementation, the oxygen concentrator is the first choice.

2.Ventilator

Typical application scenarios:

Critical ICU: e.g. ARDS (Acute Respiratory Distress Syndrome), New Crown Critical Illness, ARDS

Intraoperative/post-operative anesthesia recovery: to help restore spontaneous respiration

Sleep apnea (OSA): using CPAP or BiPAP to regulate the airway at night

Neurological or muscular respiratory failure: e.g. ALS, myasthenia gravis Patients requiring mechanical assistance with breathing

User Myth Alert: Ventilators are intended for people who are unable to breathe effectively on their own, not for people with insufficient oxygen, and therefore are not a substitute for an oxygen concentrator.

If you are only mildly short of breath and feel hypoxic after activity, an oxygen concentrator is sufficient; however, if you are unable to breathe on your own or have a severe ventilation disorder, a ventilator is a medically necessary option.

Technical structure and maintenance differences

Although both oxygen concentrators and ventilators belong to the category of “respiratory assistive devices”, there are fundamental differences in terms of hardware composition, operational thresholds and maintenance requirements. Understanding these differences helps users to more clearly assess the complexity of the equipment, ease of use and maintenance costs.

1. Comparison of technical structure

 Oxygen concentrator core structure:

Compressor: responsible for pressurizing the air to provide raw power for the molecular sieve system;

Molecular sieve system: filtering nitrogen and extracting high concentration of oxygen through Pressure Swing Adsorption (PSA technology);

Oxygen output system: stabilizing output of oxygen-enriched gas at a set flow rate, usually 1~10L/min, which can be connected to humidification bottle, mask or nasal oxygen tube.

Features: compact structure, clear module, convenient maintenance, suitable for long-term home operation.

Ventilator core structure:

Sensor system: real-time monitoring of the patient’s respiratory rhythm, airflow rate, respiratory pressure and other key parameters;

Air pump system: outputs positive pressure gas according to set parameters;

Ventilation control module: regulates inhalation/exhalation pressure, mode switching, synchronization mechanism and other complex functions, adapting to a variety of patient states.

Characteristics: complex system, relying on accurate parameter setting, high requirements for stability and response speed, applicable to clinical medical scenarios.

2. Differences in maintenance and consumables

Common User Misconceptions and Purchase Suggestions

1. Analysis of Common Misconceptions

Misconceptions 1: “Breathing problems can be solved by buying an oxygen concentrator”

Many users interpret “dyspnea” simply as “lack of oxygen”, but in fact, dyspnea may come from ventilation obstacles rather than insufficient oxygen concentration. If the patient’s symptoms are due to airway obstruction, respiratory muscle weakness or insufficient ventilation (e.g., sleep apnea, neuromuscular disease), supplemental oxygen alone can not improve the symptoms, but may cover up the condition and delay treatment.

Correct practice:

First by the doctor to assess whether the “hypoxia” or “ventilation insufficiency”, to determine whether to choose the oxygen concentrator or ventilator, can not be generalized.

Myth 2: “Ventilators and oxygen concentrator are substitutes for each other”

Many non-professional users confuse the two and believe that one can satisfy all respiratory problems. This misconception is especially common in patients with COPD and sleep apnea.

For example:

People with severe obstructive sleep apnea will not be able to solve the airway collapse problem if they only use an oxygen concentrator;

Chronic hypoxia patients will not be able to get improvement if they only use a ventilator without sufficient oxygen supply.

2. Recommendations for user selection

In order to avoid blind purchase, waste of resources and even delay of disease, it is recommended that users confirm the following questions before purchase:

① Is it clear whether you need oxygen concentration enhancement or ventilation intervention?

If there is only low oxygen saturation (SpO₂ <93%), you can consider the oxygen concentrator to assist oxygen;

If there is a ventilation obstacle (such as holding awake, snoring, apnea, anesthesia recovery difficulties, etc.), you should choose the respiratory machine;

Some people need both, such as: chronic obstructive pulmonary disease combined with sleep apnea (Overlap Syndrome).

② chronic disease patients, it is recommended that the doctor recommended selection

Whether you buy an oxygen concentrator or a ventilator, it is recommended that through the pulmonary function assessment, blood gas analysis, sleep monitoring, etc., by the doctor to issue a professional recommendation, especially the elderly, long duration of the disease, the complexity of the underlying disease patients.

③ Focus on certification qualifications to ensure safety compliance

When choosing equipment, especially for medical purposes, please make sure to ensure one or more of the following certifications:

CE (EU): applicable to the EU national market, emphasizing the electrical safety and stable performance of the product;

FDA (U.S.): the U.S. Food and Drug Administration certification, with special emphasis on the materials of the device and the accuracy of the output;

ISO 13485: the quality management system certification of the medical device, reflecting the production of the company’s quality management system certification, especially the production of the device.

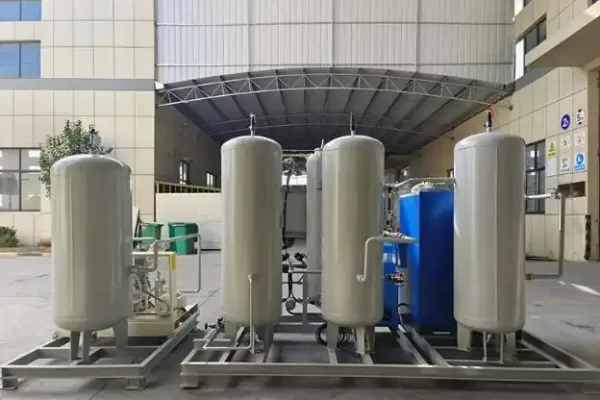

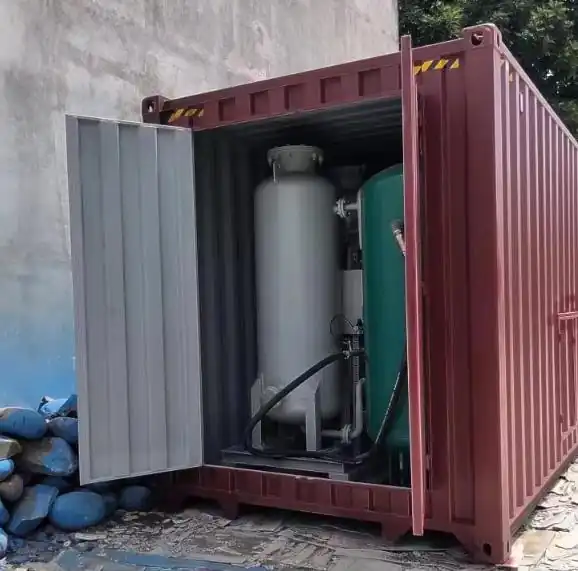

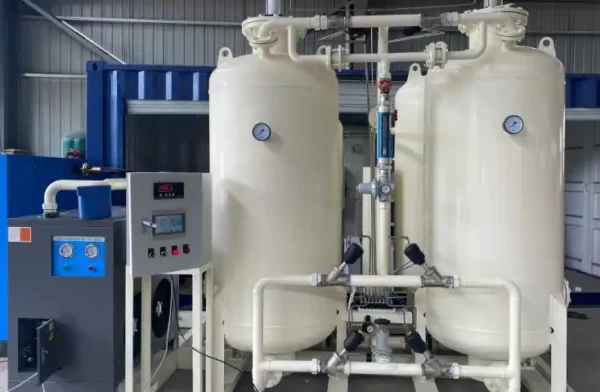

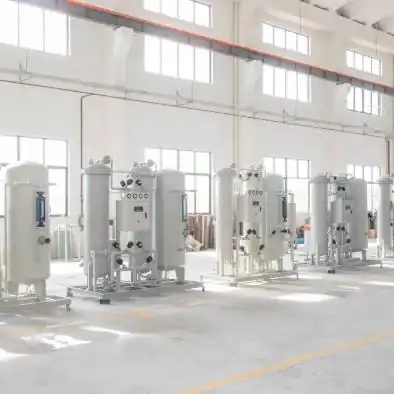

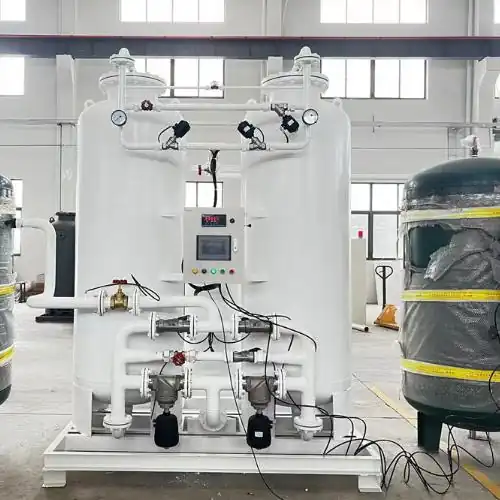

In addition to psa nitrogen generator, we also produce  VPSA Oxygen Generators,PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in psa nitrogen Systems or other products, please feel free to send an email to [email protected]. We will be very happy to serve you.
